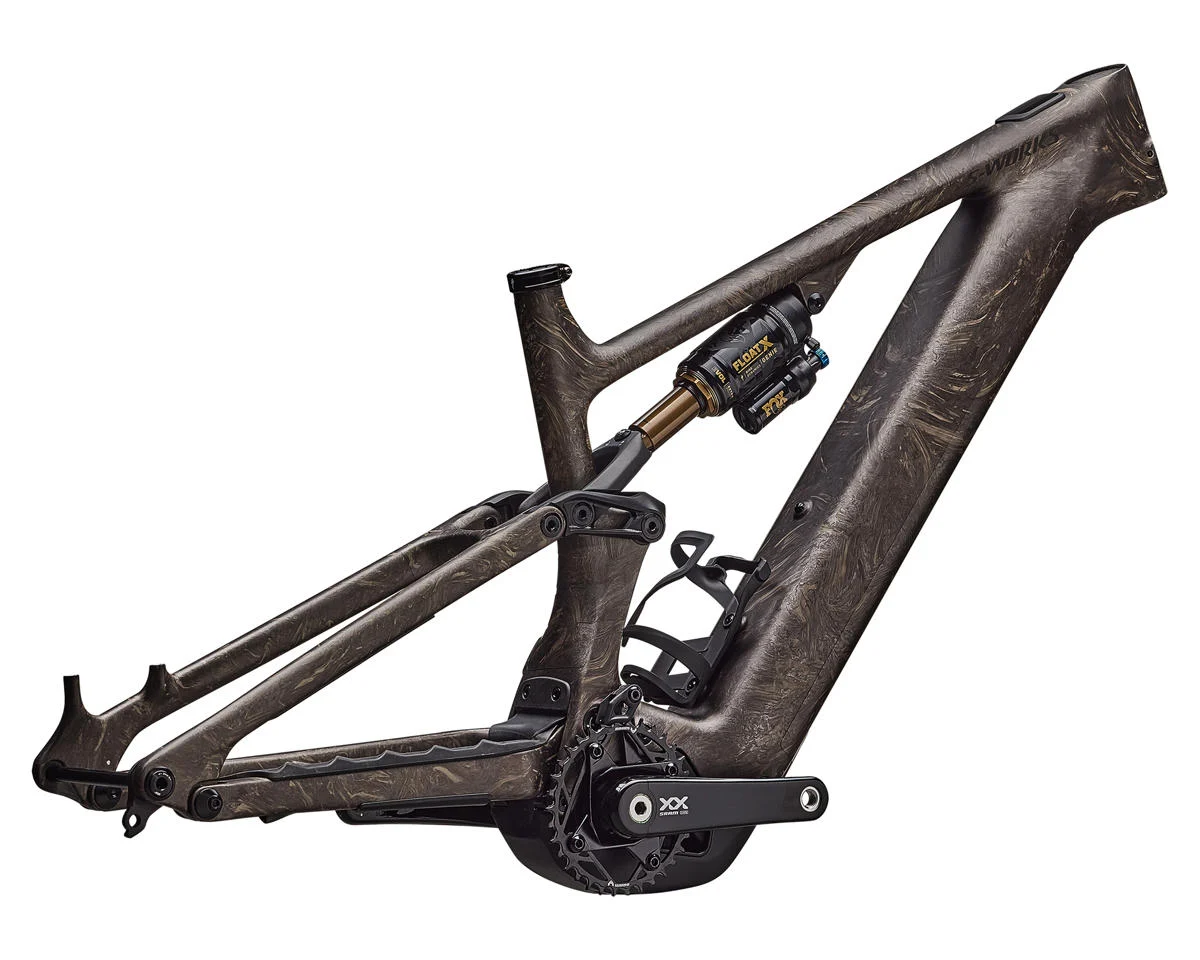

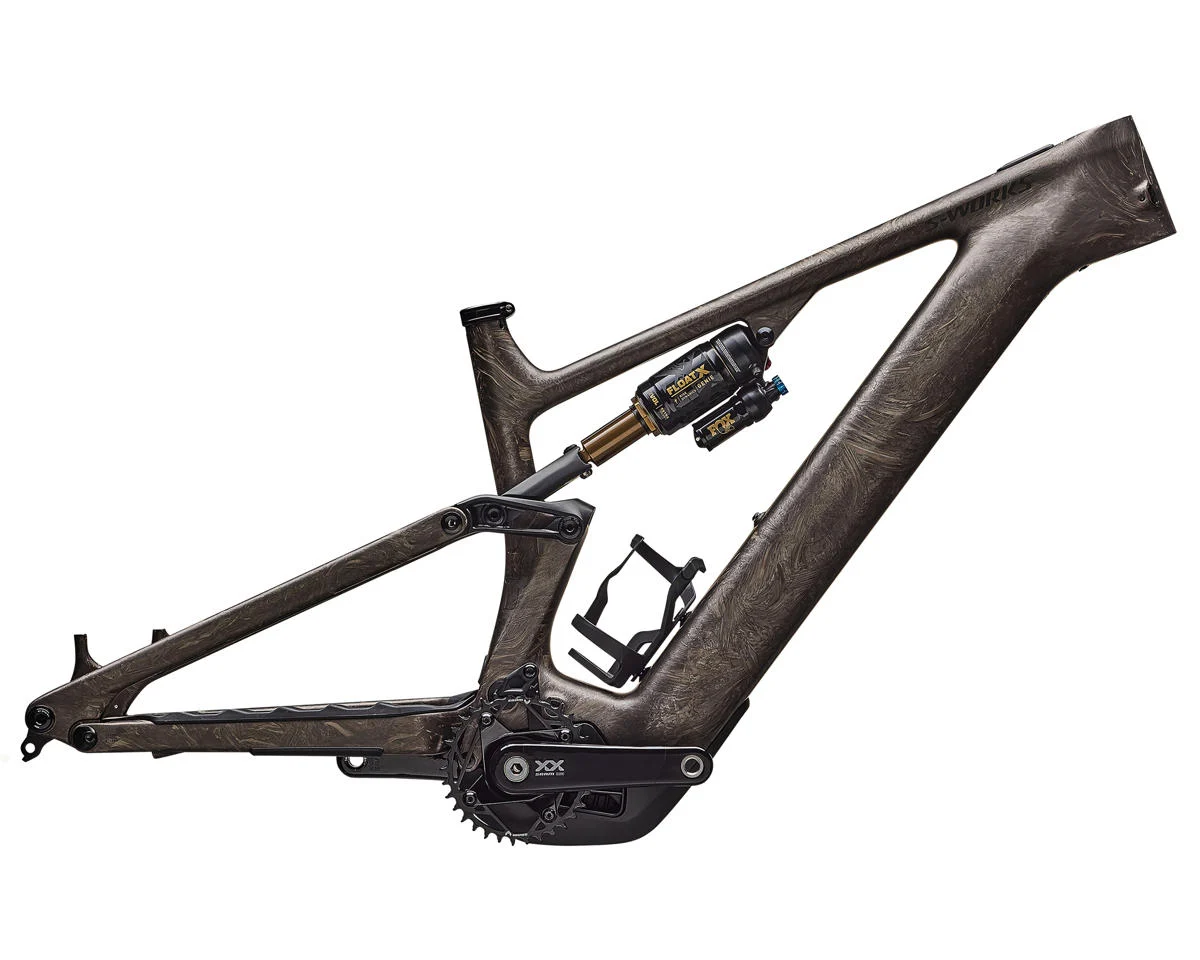

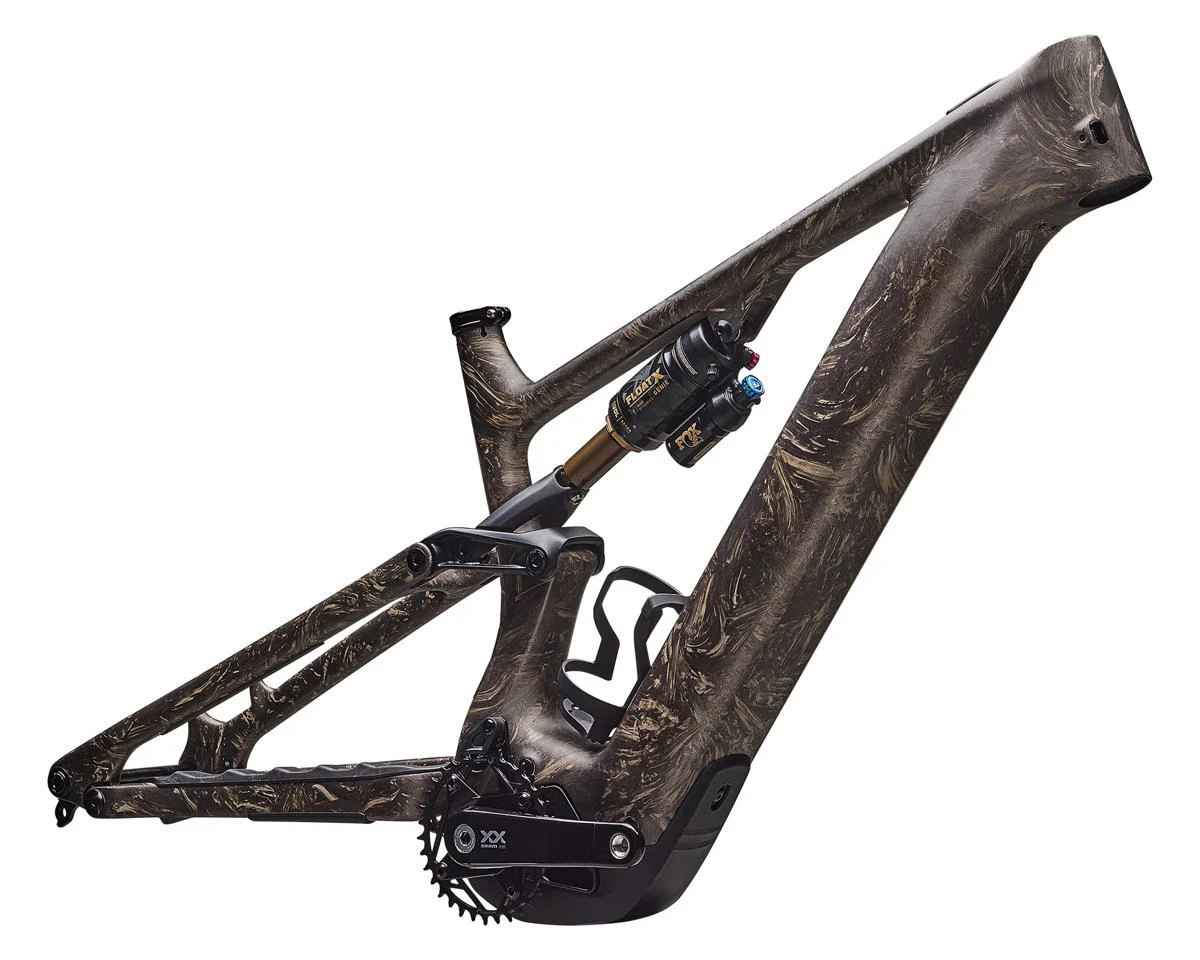

Specialized S-Works Turbo Levo 4 Frameset (Taupe/Gunmetal Strata/Obsidian) (S2)

Specialized S-Works Turbo Levo 4 Frameset Description:

The Specialized S-Works Turbo Levo 4 Frameset aims to transform anyone who rides it into the most ‘SuperNatural’ version of themself through an engineered level of power, traction, control, and an unrivaled range that conquers any off-road terrain you place in front of it. S-Works Turbo Levo 4 frames register an ultimately lightweight on scales thanks to a design that includes a FACT 11m carbon fiber chassis, rear end, and carbon link, sparing riders the bulk associated with heavy-hitting trail E-Bikes. Specialized’s science team worked to make the most of Levo 4’s 150mm of rear travel, engineering Fox rear shocks with GENIE suspension technology that enhances control through performance similar to a coil spring in the bump zone, bottom-out prevention at the end of the stroke through a progressive spring curve, and simple tunability that enables instant personalization of platform and feel. Levo 4 offers a fit based on a combination of rider style and sizing, lending riders a better overall fit before checking the potential for an even more customized setup. Riders who’ve built a preference for their ride’s characteristics can adjust Levo’s geometry by adjusting the bottom bracket Flip Chip, changing BB height for stability or pedal clearance. Utilizing the frame’s rear Flip chip adjusts the wheelbase for increased stability and better maneuverability, with additional adjustments to the frame’s steering made with an adjustable head tube angle. For those looking to get the most out of available wheel sizes on the market, Levo frames accommodate either 27.5″ wheels or 29″ wheels, enabling an acceleration-hungry 27.5″/29″ mullet mix or a stable dual-29″ wheel combination for predictable handling and control.

Levo 4’s frame follows through on decades of ride quality and innovation brought to the market over the course of Specialized’s history. Levo 4’s S-Works 3.1 Full Power motor system establishes a new pinnacle of mechanical and sonic performance. SuperNatural is the name of the game when it comes to Levo 4’s E-Bike dominance, providing 850 watts of power and 111Nm of torque that push riders to climb higher, ride faster, and bend expectations on how far and how fast you travel. Levo amplifies pedal forces so naturally that it becomes effortless to flow through tech, maintain control at high speed, and climb steep, loose terrain with more traction than anyone else on the trail; riders will come to know why it can only be described as “SuperNatural.” Levo 4 not only calms the anxiety around battery range, it completely dissolves it, with 4 distinct modes designed to offer power and efficiency based on terrain, elevation, or speed. Modular battery design within Levo’s downtube offers options for range or lightweight performance; if all-day endurance is your bag, Turbo Levo 4 covers plenty of ground with its 840Wh stock battery, and can be supplemented with a range extender for even longer sessions. If your journey calls for competitive performance, sub in the compact 600Wh battery, and make up your range with a lowered overall system weight. Regardless of your battery choice, Levo leaves room to carry vital trail essentials onboard by way of internal frame storage; with the 840Wh battery pack installed, users can elect to equip a SWAT internal storage compartment within downtube battery cavities; if users equip the 600Wh battery, even more room can be dedicated to ride storage; the options are endless.

All of Turbo Levo 4’s potential is monitored and controlled from the MasterMind toptube control unit, a full-color touchscreen interface that displays vital system details such as charge level, motor support mode, ride data, or your personal performance metrics. Connect your Turbo Levo 4 via Bluetooth wireless connection to the Specialized App for enhanced control and diagnostics, or sync with other ride apps for data logging or even bike location with Apple Find My integration. Levo’s potential is only ever an hour away, courtesy of Specialized’s Super Charger battery, a 12 amp, 700-watt Smart Charge that’s capable of taking Levo’s 840Wh battery from 0-80% in under 60 minutes, with other modes focusing on standard charging times or Eco mode for long-term battery preservation.

Features:

• Full-power carbon fiber E-MTB trail frame with integrated display system and carbon fiber link
• FACT 11m Carbon S-Works Levo 4 Frame makes a light impression through carbon chassis, carbon rear-end, and carbon shock extension
• GENIE suspension enhances control through bump zones, prevents bottom-outs with a progressive spring curve, and presents tunability for personalization
• Flip Chips for BB positioning, wheelbase adjustment, and headtube angle for steering adjustment empower riders with the ability to tune their geo
• 27.5″/29″ wheel adaptability lets users choose their ideal wheel size, for a split mullet set-up or leveled dual wheel combination
• S-Works 3.1 Motor delivers a supernatural feel that shines with powerful, adaptive operation that provides an intuitive boost of rider effort
• Levo 4 motors possess game-changing efficiency, spinning higher, more efficient RPMs for battery preservation for a boastful strength-to-weight ratio
• MasterMind top tube display transmits vital ride data, presents options for fine-tuning of assist levels, and connects via Bluetooth to the Specialized app for total control
• SWAT storage system allocates valuable storage room within the downtube, presenting space for essentials like flat repair kits or tools
• Configurable battery system presents modular upgrade options, users can swap in a smaller capacity battery to save weight, or connect a range extender for longer days
• Levo 4 Super Charger accomplishes 0-80% of charge in less than one hour in its quickest setting. No rush? Select Eco mode to exchange charge time for optimal battery health

Specifications:

• Frame: S-Works Levo 4 FACT 11m carbon chassis and rear-end w/ Carbon Shock Extension (150mm Travel) (SWAT Storage) (12 x 148mm) (SRAM UDH) (Side Entry Battery)
• Rear Shock: FOX FLOAT X Performance w/ Specialized GENIE Shock Tech (RD Trail Tune) (2-Position w/Open Mode Tuning) (LSR adjustment) (210 x 55mm)
• Headset: S092500002/S092500001
• Headset Size: (Integrated) (Tapered) (1-1/8” to 1-1/2”)
• Brake Compatibility: Disc Brake (Hydraulic)
• Brake Mounts: Post Mount
• Rotor Compatibility: Up to 200mm
• Axle Type: Thru-Axle
• Hub Spacing: 12 x 148mm
• Stem: Not Included
• Stem Size: 1-1/8″
• Seatpost: Not Included
• Seatpost Diameter: 34.9mm
• Seatpost Clamp: 38.6mm (Alloy) (Included)
• Crank: SRAM XX Carbon Crank
• Bottom Bracket Type: ISIS interface
• Bottom Bracket Width: 73mm
• Drivetrain Compatibility: 1x Electronic Only
• Chainring Compatibility: 34T
• Tire Clearance: 27.5″ x 2.4 | 29″ x 2.4
• Cable Routing: Internal
• Dropper Post Routing: Internal
• Water Bottle Bosses: 1 Mounting Position (Downtube)
• Fender/Rack Mounts: –
• Front Derailleur Mount: –
• Rear Derailleur Hanger: SRAM UDH
• Charger: Specialized 12amp smart charger (4 mode charger)
• UI/Remote: MasterMind T3 Display System (2.2″ Hi-res color screen) (Specialized App compatible)
• Motor: Specialized Levo 3.1 S-Works Motor (111Nm power) (850W power)
• Battery: 840wh battery
• Model Year: 2026
• Color: Satin Taupe / Gunmetal Strata / Metallic Obsidian
• Weight: 27 lb, 4.0 oz (S4)

Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit www.nyc.gov/fdny/batteries.

Assembly Note:

These bikes are fully built by our expert bike builders, then partially disassembled as needed for shipping. Bikes will arrive to you with some basic assembly still required. Tools for assembly are included.
