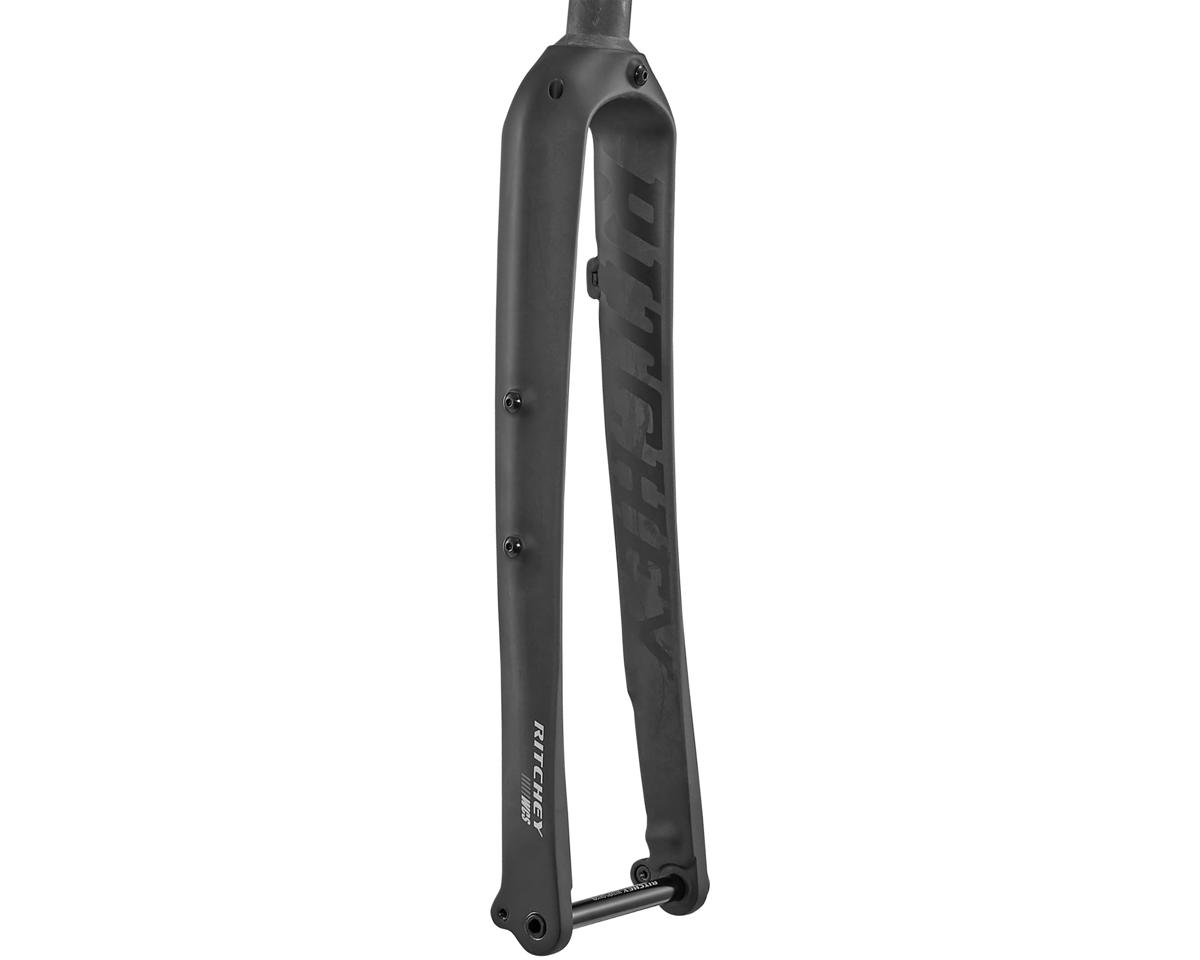

Ritchey WCS Carbon Brevet Fork (Matte UD Carbon Fiber) (Disc) (1-1/8″ Steerer) (700c) (12x100mm) (48mm Rake) (388mm)

Ritchey WCS Carbon Brevet Road Fork Description:

The Ritchey WCS Carbon Brevet Road Fork is designed around the unique demands of self-supported randonneuring and long distance riding. Tough high modulus carbon fibers and cutting edge construction techniques put less bends in the fibers as they flow throughout the fork which results in a torsionally stiff and robust fork with just the right amount of dampening to create an ideal balance of road feel and comfort. Internal hub dynamo cable routing allows the user to install a headlight that will stay lit as long as the bicycle is moving, and fender and porteur/lowrider rack mounts on the fork blades provide attachment points that will allow a rider to haul everything they need when heading out to destinations unknown.

Notes: The hole in the front of the fork crown shown in the images will be closed and is not intended to attach a light or any other accessories. Multiple accessory mounts along the fork legs as well as dropout rack mounts can be used to attach racks or other accessories (max weight capacity is 2.5kg, or 5.5lbs, per leg). Finally, a maximum height of 30mm of headset spacers can be used between the top of the bicycles headset and the bottom of the stems steerer tube clamp.

Features:

• Designed specifically for long distance travel with more rake added to increase the bicycles stability especially when the bike is loaded
• Widely spaced fork blades have room for wider tires, which will add traction, give a smoother ride, and have less flats when riding over rough terrain
• Lightweight high modulus carbon fiber construction delivers incredible strength and durability while fighting off rider fatigue by dampening road and trail chatter
• Integrated 45° crown race and smooth internal fiber flow in the crown/steerer area results in excellent force transfer from the crown to the steerer tube and offers robust impact strength
• Thru axle improves torsional rigidity for great handling manners and makes it much easier to align the disc rotor within the caliper when installing the wheel
• Dynamo cable internal routing allows a hub dynamo powered headlight that shines bright as long as the bike is moving to be installed on the bike
• Fender and porteur/lowrider rack mounts on the fork blades with black stainless steel hardware provide attachment points to haul the gear needed for self-supported randonneuring (2.5kg, or 5.5lbs, max capacity per fork blade)
• Not compatible with Ritchey’s Comp Cartridge EC34, Classic EC34, EC34 Threadless and RL1 EC34 headsets

Specifications:

• Material: Carbon Fiber
• Steerer Tube: 1-1/8″ Straight Steerer w/ Integrated 45° Crown Race
• Steerer Tube Length: 300mm
• Axle Size: 12 x 100mm Thru Axle
• Brake Mount Type: Flat Mount Disc
• Rotor Size: 140mm (Max: 160mm w/ Adapter; Adapter Sold Separately)
• Rake/Offset: 48mm
• Axle-To-Crown Height: 388mm
• Fork Blade Spacing: 52mm
• Wheel/Tire Compatibility: 700 x 36mm (w/ Fender) | 700 x 40mm (Without Fender; Depending On Tire/Rim Manufacturer)
• Minimum Recommended Tire Clearance: 4mm (0.16″)
• Max Payload: 2.5kg (approximately 5.5lbs) Per Side
• Color: Matte Black Unidirectional Carbon Fiber Finish
• Weight: 350g (w/ Uncut Steerer; Weight Doesn’t Include Thru Axle)
