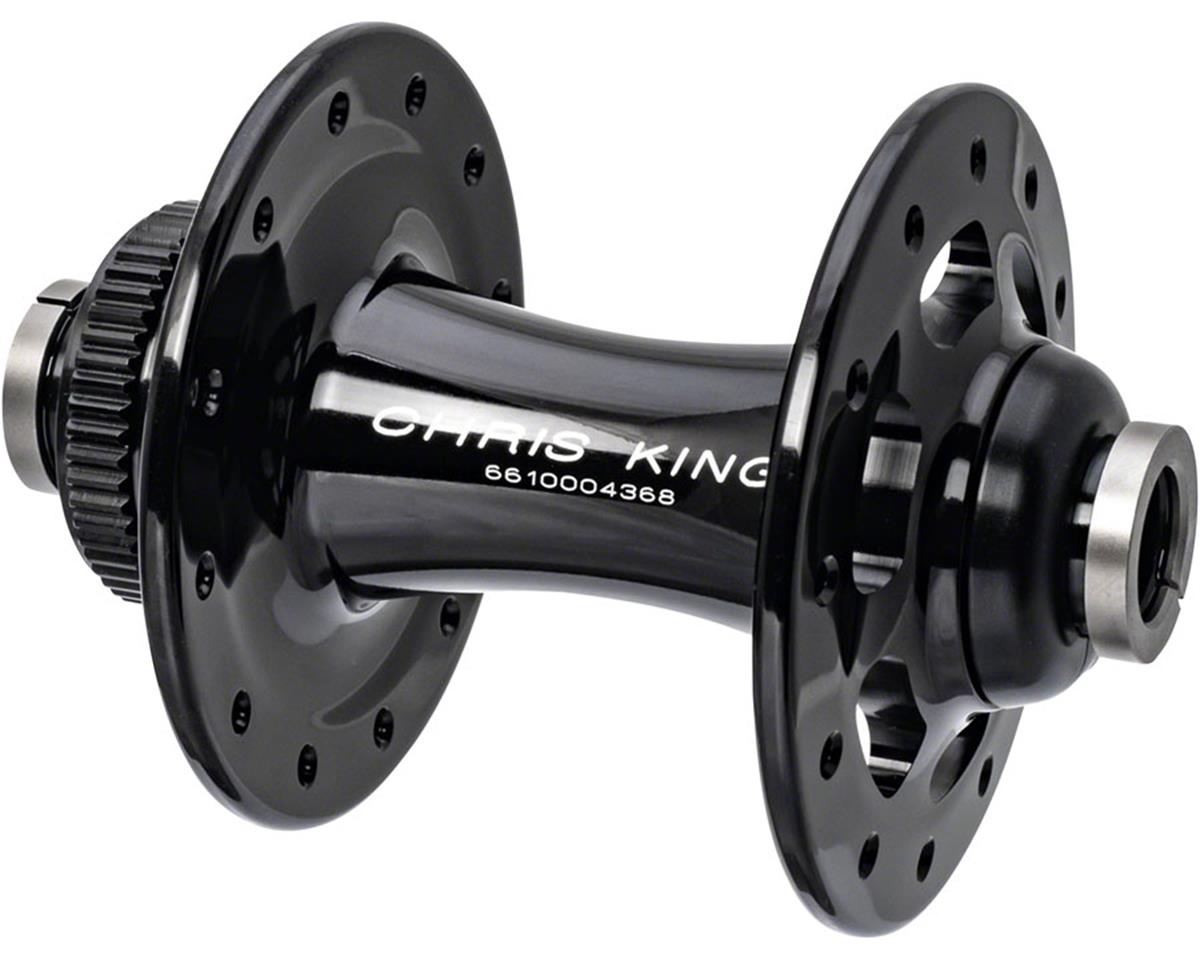

Chris King R45D Disc Hubs (Black) (12 x 100mm) (24H) (Centerlock)

Chris King R45D Disc Hub Description:

Chris King R45D Disc hubs combine a lightweight hub body, legendary made-in-house bearings, and a Centerlock rotor mount to harness the power of disc brakes. The result is the increased power and modulation of disc brakes, the fast, smooth rolling speed of our bearings, and the rail steering from Chris King’s one-piece solid axles.

Features:

• Elegantly machined, disc brake-compatible road and gravel hubs
• Narrow hub body and low flanges for sleek, lightweight performance
• Legendary Chris King Bearing quality lasts through years of use
• Easily serviceable and completely re-buildable
• 5-Year Chris King warranty

Specifications:

• Position: Front or Rear
• Brake Type: Disc Brake (Centerlock)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm, 12 x 142mm
• Spoke Count: 24H, 28H, 32H
• Spoke Type: J-Bend
• Bearing Type: Sealed Cartridge
• Color: Black
• Weight: –

Rear Hub Dimensions:

• Left Side Flange Diameter: 57.4mm
• Right Side Flange Diameter: 57.4mm
• Drive Side Center to Flange: 18.7mm
• Non-Drive Side Center to Flange: 33mm

Front Hub Dimensions:

• Left Side Flange Diameter: 57.4mm
• Right Side Flange Diameter: 57.4mm
• Drive Side Center to Flange: 30.6mm
• Non-Drive Side Center to Flange: 22.3mm

This product was added to our catalog on June 12, 2025
