Specialized Complete Integrated Headset (Black) (IS41/28.6) (IS52/30) (Gen. 2 Turbo Kenevo/Status 2 170 DH)

Specialized Complete Integrated Headset Description:

The Specialized Complete Integrated Headset is a factory replacement part for 2nd generation Specialized Turbo Kenevo e-bikes and the Specialized Status 2 170 DH mountain bike.

Features:

• Replacement integrated style headset that adapts straight, 1 1/8″ threadless fork steerer tubes to work with a tapered style head tube
• Sealed bearings operate very smoothly and reduce maintenance time and costs
• 4mm tall alloy top cover gives the rider full flexibility to adjust the stem/handlebar height to achieve the optimal balance between comfort and performance
• Alloy crown race is thicker so a fork with a straight 1 1/8″ steerer tube can fit into a frame that takes a 1.5″ lower bearing race

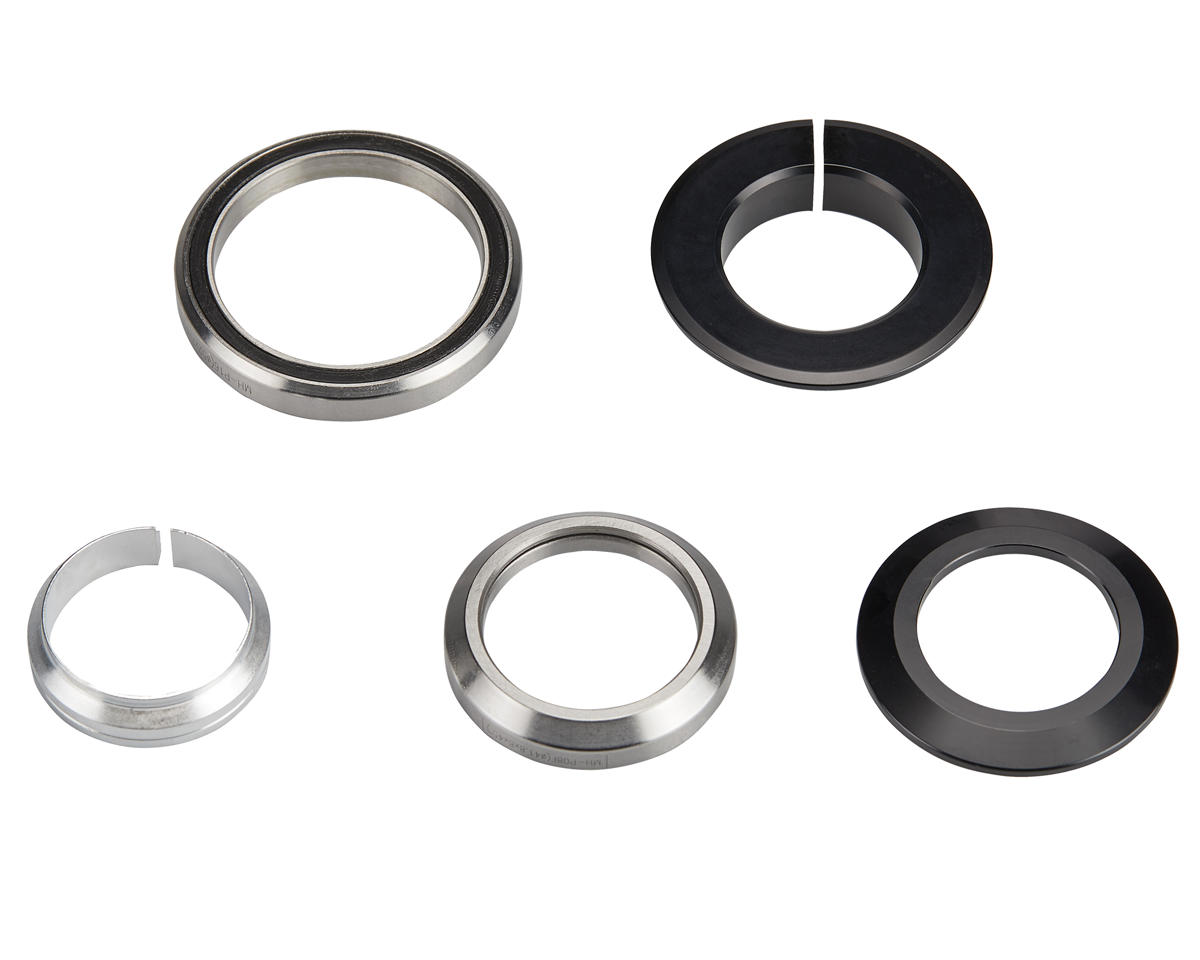

Includes:

• (1) 1 1/8″ Upper Bearing: 41.8mm OD x 30.5mm ID x 8mm Thick (45 x 45°)
• (1)1.5″ Lower Bearing: 51.8mm OD x 40.0mm ID x 7mm Thick (45 x 45°)
• (1) 4mm Tall Alloy Transition Top Cover (For 1 1/8″ Stem) (46mm OD)
• (1) 9mm Tall Split Alloy Compression Ring
• (1) 30mm ID x 10mm Thick Alloy Crown Race (For Straight 1 1/8″ Steerer Tube to 40mm ID, 45 x 45° Bearing)
