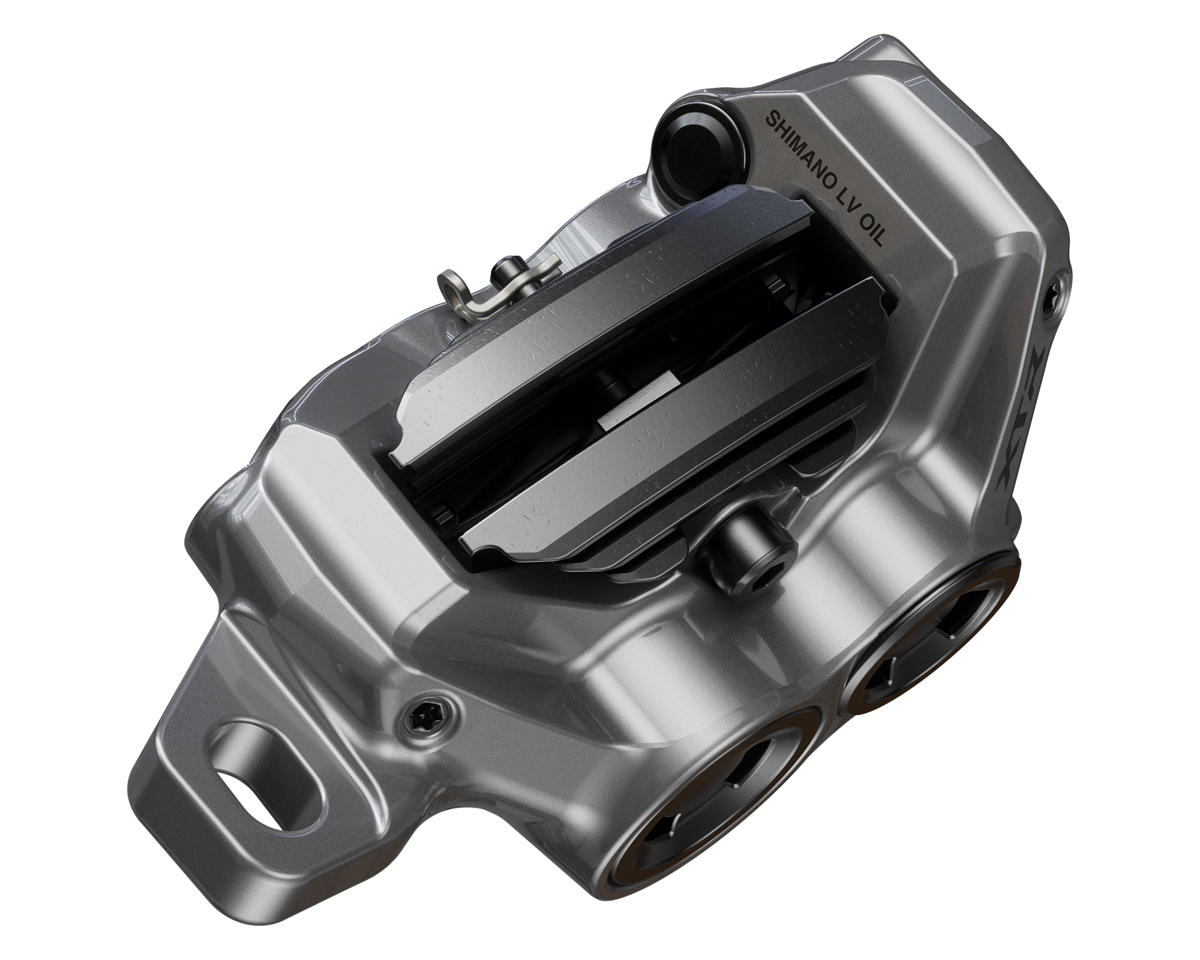

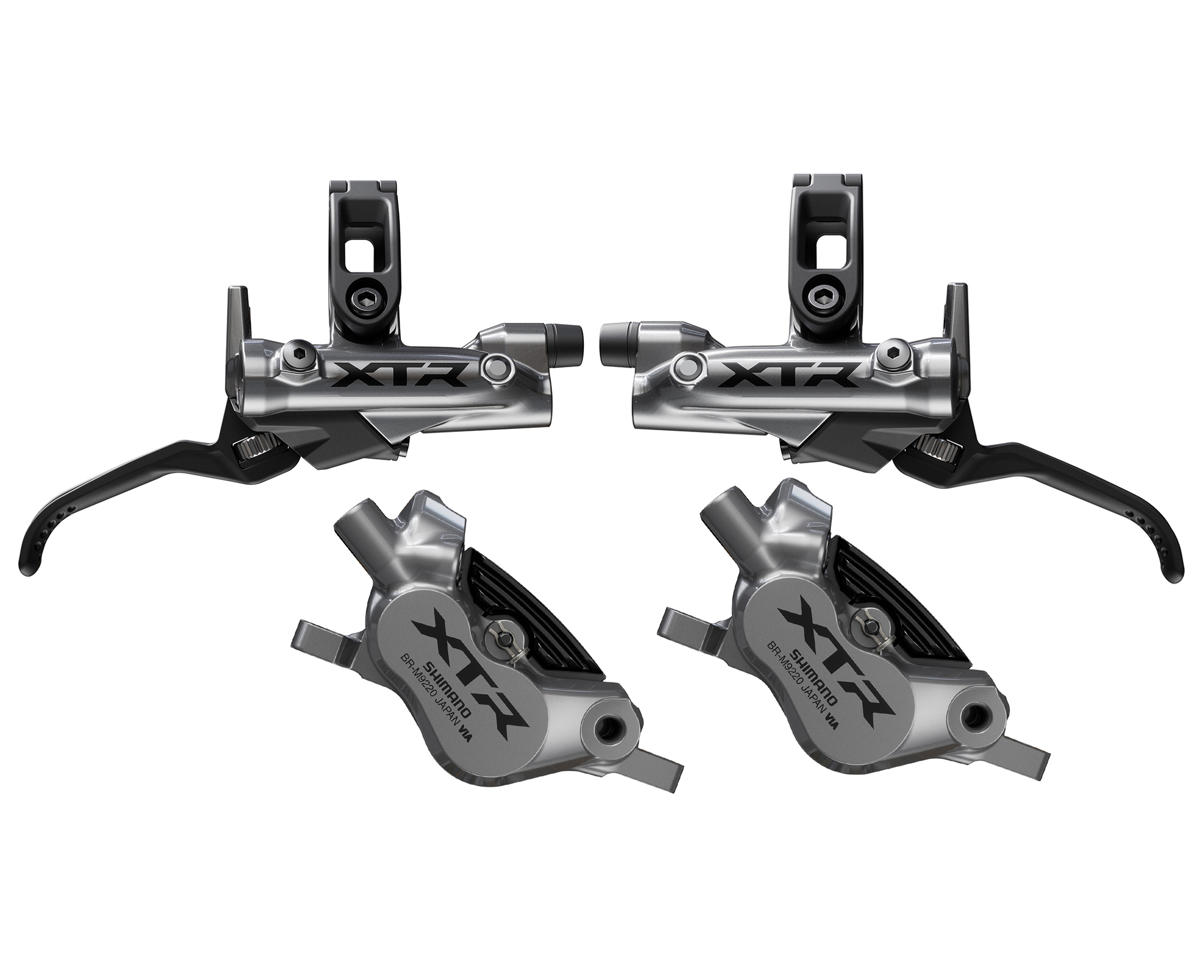

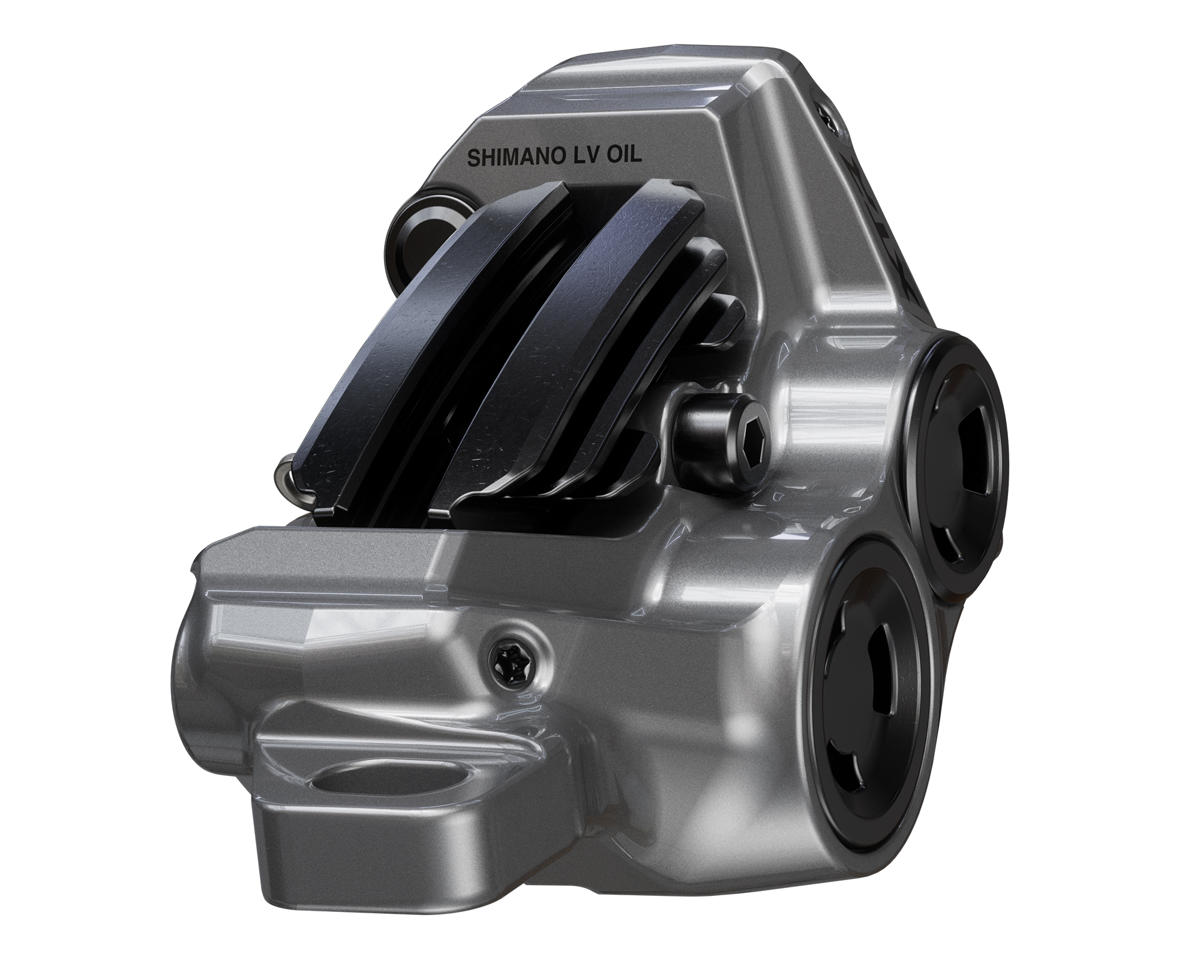

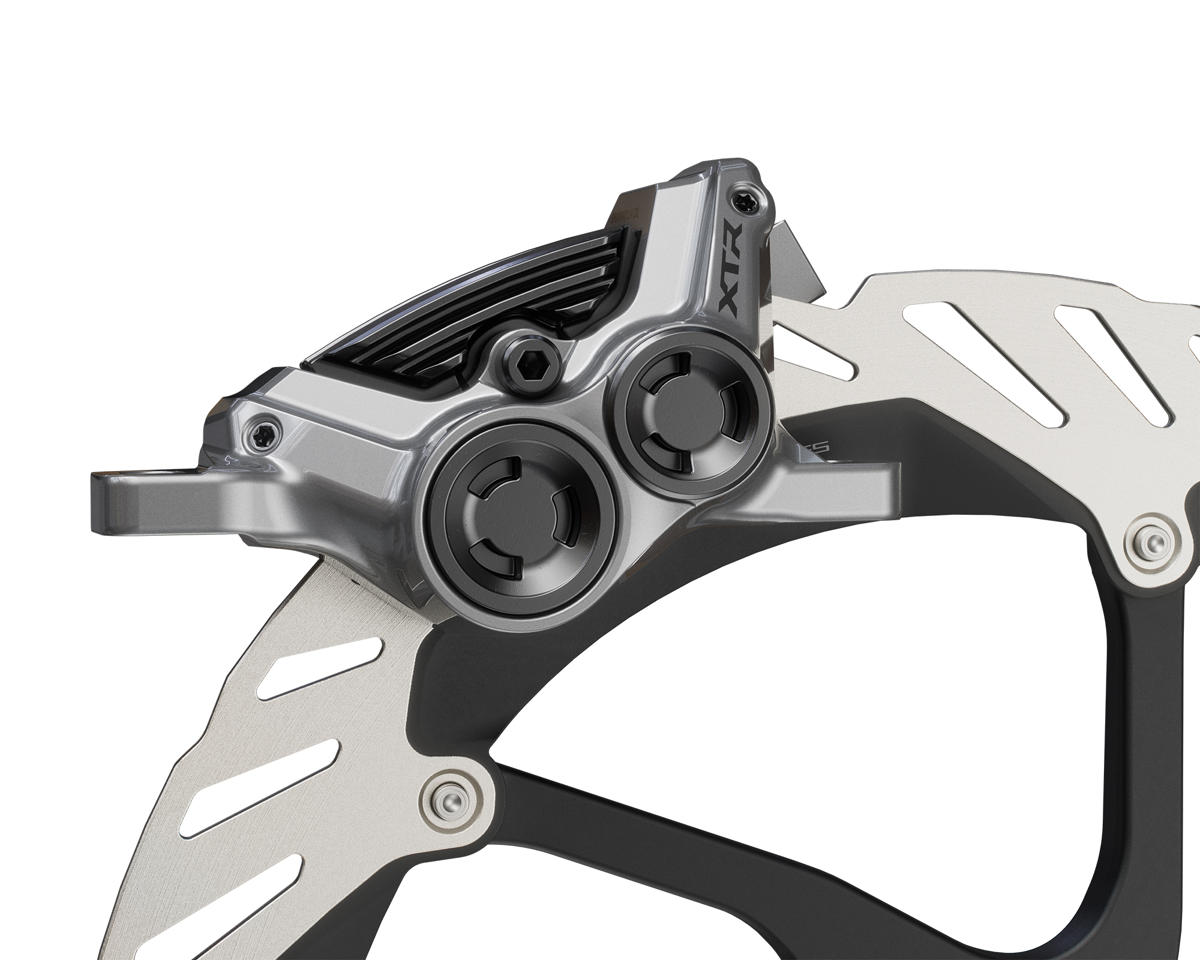

Shimano XTR M9220 4-Piston Hydraulic Disc Brakes (Silver/Black) (Pair) (Post Mount) (Calipers Included)

Shimano XTR M9220 4-Piston Hydraulic Disc Brakes Description:

This Shimano XTR M9220 4-Piston Hydraulic Disc Brakes combine the trail-tuned ergonomics and power modulation of BL-M9220 brake levers with the advanced stopping power of BR-M9220 brake calipers, resulting the latest evolution of XTR performance. In the hand, BL-M9220 brake levers utilize refined ergonomics and revised internals to enable outstanding tactile feel and modulation that enables better trail control. The robust, yet lightweight, 4-piston BR-M9220 brake calipers express DH-capable power, consistency, and control, and finally, a revised low viscosity mineral oil formulation more easily flows through the inner workings of these brakes and will sustain a consistent bite point in all weather conditions.

Note: Disc brake rotors or brake caliper adapters are not included with any of these brakes and are available separately.

Features:

• Enduro-focused hydraulic disc brakes with outstanding feel, modularity, and power
• XTR BL-M9220 levers have a closer pivot point that follows the natural arc of the fingers resulting in trail-optimized performance and ergonomics
• XTR BR-M9220 caliper acts with a DH-capable power curve but with easier modulation that fits enduro riding demands
• Low viscosity mineral oil design creates reliable performance in all conditions
• Rattle-free brake pad design features heat-dissipating fins for more consistent brake pad bite throughout the bike ride

Specifications:

• Brake Type: Hydraulic
• Brake Fluid: Mineral Oil
• Brake Mount: Post Mount
• Brake Pads: Organic/Resin
• Hose Length: 1000mm (Left) | 1700mm (Right)
• Pistons: 4
• Lever Clamp: I-Spec EV Compatible (22.2mm)
• Color: Black
• Weight: –

Each Order Includes:

• (1 -or- 2) XTR BL-M9220 Hydraulic Brake Levers
• (1 -or- 2) XTR BR-M9220 Hydraulic Brake Calipers
• (1) BH90 cable hose (1000mm for the front, 1700mm for the rear; pair includes both)
• (1 -or- 2) Pair(s) of P04C-MF metal pads with fins
• Each order for the pair of brakes will include all the above plus:
• (2) Pairs of P03A-RF resin pads with fins
• (1) 100mL Low Viscosity Brake Oil
